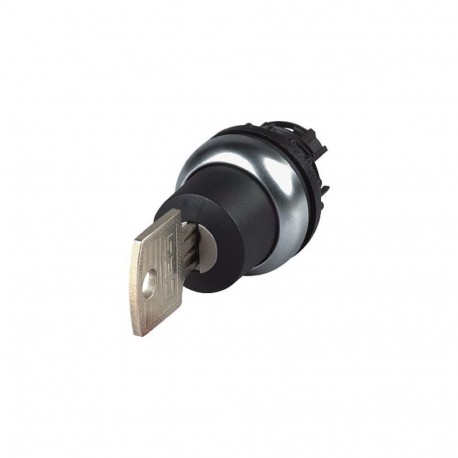

M22-WRS3-SA(*)-*-A9 285539 Y7-285539 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, type acc..
M22-WRS3-SA(*)-*-A9
285539
Y7-285539
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number M22-WRS3-SA(*)-*-A9 is a key-operated actuator built to restrict unauthorized access to critical control panel commands. Key-operated switches are standard across automated machinery to guarantee that only authorized personnel can change operational modes or safety states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲Delivery program
= spring-return]with SWD-RMQ connections
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
Shock duration 11 ms
Sinusoidal
according to IEC 60068-2-27 g
GL
LR
