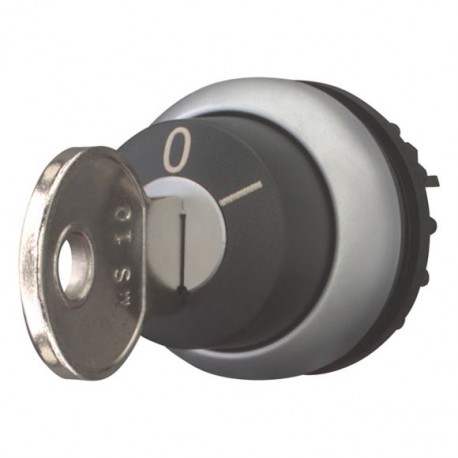

EATON - MOELLER M22-WRS-MS10-A1 M22-WRS-MS10-A1 111776 Y7-111776 EATON ELECTRIC Key-operated actuator, 2 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS-MS10-A1 111776 Y7-111776 EATON ELECTRIC Key-operated actuator, 2 positions, maintained

M22-WRS-MS10-A1

111776

Y7-111776

EATON - MOELLER

1 Pcs.

Key-operated actuator, 2 positions, maintained M22-WRS-MS10-A1 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS10, Key withdrawable: 0, Bezel: titanium

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-WRS-MS10-A1 key-operated actuators secure industrial machinery by restricting operational access exclusively to authorized personnel. Facilities incorporate these locking mechanisms into control panels to prevent unauthorized mode changes or accidental machine activation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: M22-WRS-MS10-A1
  • Catalogue code: 111776

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111776
Model Code
M22-WRS-MS10-A1
EAN
4015081113262
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
EN 60947-5
CSA Std. C22.2 No. 14-05
VDE
CE
CSA
UL
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947
UL File No.: E29184
VDE 0660
CSA File No.: 012528
