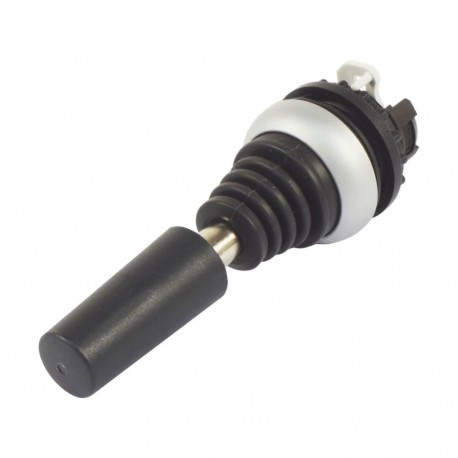

EATON - MOELLER M22-WRJS2H M22-WRJS2H 178574 Y7-178574 EATON ELECTRIC Joystick 2 positions horizontal stay-put metal shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRJS2H 178574 Y7-178574 EATON ELECTRIC Joystick 2 positions horizontal stay-put metal shaft

M22-WRJS2H

178574

Y7-178574

EATON - MOELLER

1 Pcs.

Joystick; 2 positions; horizontal; stay-put; metal shaft M22-WRJS2H Eaton Moeller® series M22 Joystick, with one operating point per operating direction, with metal shaft, 2 positions, Bezel: titanium, maintained, Horizontal Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Function: maintained, Horizontal, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller joystick provides horizontal stay-put control for industrial control desks, enabling operators to maintain selected settings on automated equipment. The rugged design ensures reliable switching performance in harsh operational conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 22.5 mm
  • Joy stick length (EF006524): 75 mm
  • Number of actuation directions (EF002425): 2
  • Number of switch positions (EF000231): 0
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): No
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
178574
Model Code
M22-WRJS2H
EAN
4015081739035
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.038 kg
Certifications
CSA
IEC/EN 60947
VDE 0660
CSA-C22.2 No. 14-13
CE
CSA-C22.2 No. 94-91
UL File No.: E29184
UL Category Control No.: NKCR
UL 508
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
CSA File No.: 012528

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
