View larger
Images are for illustrative purposes only. Please refer to data sheet for details

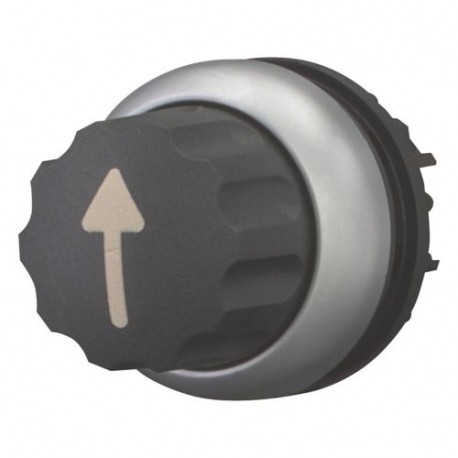

M22-WR3-X7 284786 Y7-284786 EATON ELECTRIC Selector switch, 3 positions, arrow symbol
M22-WR3-X7
284786
Y7-284786
EATON - MOELLER
1 Pcs.
Selector switch, 3 positions, arrow symbol
M22-WR3-X7
Eaton Moeller® series M22 Changeover switch, RMQ-Titan
Classic selector switch in RMQ-Titan program. The pushbutton fulfils degree of protection IP66 and is approved for use world wide.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
284786
Model Code
M22-WR3-X7
EAN
4015082847869
Product Length/Depth
43 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
DNV
GL
LR
GL
LR
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 3 |
| Type of control element (EF006976) | Rotating button |
| Suitable for lighting (EF001142) | No |
| Colour control element (EF007167) | Black |
| Colour indicator light cap (EF007165) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
