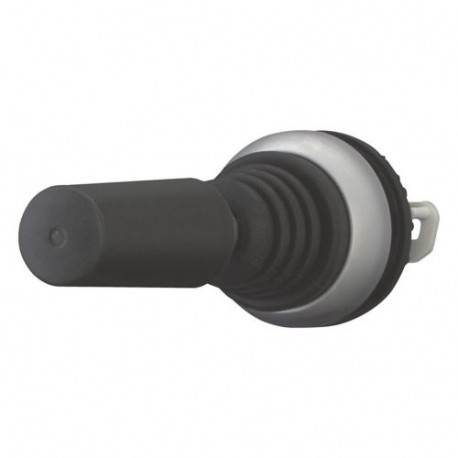

EATON - MOELLER M22-WJS4-2P M22-WJS4-2P 178563 Y7-178563 EATON ELECTRIC Joystick 4 positions 2 operating points metal shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WJS4-2P 178563 Y7-178563 EATON ELECTRIC Joystick 4 positions 2 operating points metal shaft

M22-WJS4-2P

178563

Y7-178563

EATON - MOELLER

1 Pcs.

Joystick; 4 positions; 2 operating points; metal shaft M22-WJS4-2P Eaton Moeller® series M22 Joystick, with 2 operating points per operating direction, with metal shaft, 4 positions, Bezel: titanium, momentary Joystick, Product range: RMQ-Titan, Single unit, Description: with 2 operating points per operating direction, with metal shaft, 4 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Function: momentary, Instructions: These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P., Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller joystick acts as a primary operator control interface, enabling manual direction selection on cranes, hoists, and industrial automation equipment. Such devices are engineered to provide dependable tactile feedback and precise switching performance within control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 22.5 mm
  • Joy stick length (EF006524): 75 mm
  • Number of actuation directions (EF002425): 4
  • Number of switch positions (EF000231): 2
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): Yes
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
178563
Model Code
M22-WJS4-2P
EAN
4015081738922
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Certifications
UL
CSA
IEC/EN 60947
CSA File No.: 012528
CSA-C22.2 No. 14-13
IEC/EN 60947-5
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
UL File No.: E29184
UL 508
VDE 0660
Catalog Notes
These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P.

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Fitted with:
2 operating points per operating direction
Metal shaft
Front ring
Retraction in 0-position

General

Degree of protection
IP66
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
2000 Operations/h
Product Category
RMQ-Titan
Type
Joystick

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A

Communication

Connection to SmartWire-DT
No

Actuator

Actuating force
5 N
Actuator function
Momentary
Number of actuation directions
4

Contacts

Force for positive opening - min
0 N
