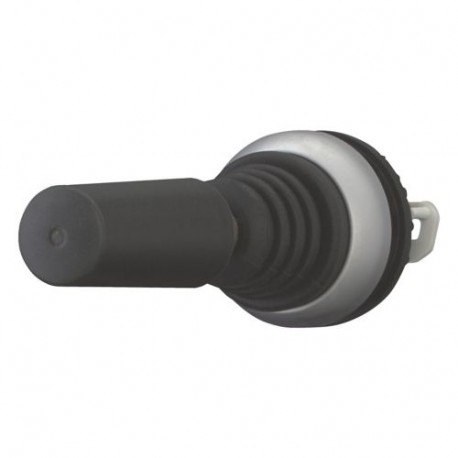

EATON - MOELLER M22-WJS2V-2P M22-WJS2V-2P 178564 Y7-178564 EATON ELECTRIC Joystick 2 positions vertical 2 operating points metal shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WJS2V-2P 178564 Y7-178564 EATON ELECTRIC Joystick 2 positions vertical 2 operating points metal shaft

M22-WJS2V-2P

178564

Y7-178564

EATON - MOELLER

1 Pcs.

Joystick; 2 positions; vertical; 2 operating points; metal shaft M22-WJS2V-2P Eaton Moeller® series M22 Joystick, with 2 operating points per operating direction, with metal shaft, 2 positions, Bezel: titanium, momentary, Vertical Joystick, Product range: RMQ-Titan, Single unit, Description: with 2 operating points per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Function: momentary, Vertical, Instructions: These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P., Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A joystick 2 positions vertical 2 operating points metal shaft acts as a manual control interface on industrial control panels and operator consoles. Operators rely on these devices to issue discrete directional commands to machinery, hoists, and automated handling systems requiring precise physical inputs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 22.5 mm
  • Joy stick length (EF006524): 75 mm
  • Number of actuation directions (EF002425): 2
  • Number of switch positions (EF000231): 2
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): Yes
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
178564
Model Code
M22-WJS2V-2P
EAN
4015081738939
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
UL File No.: E29184
UL 508
IEC/EN 60947-5
VDE 0660
CE
UL
CSA-C22.2 No. 14-13
CSA Class No.: 3211-03
CSA
IEC/EN 60947
Catalog Notes
These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
