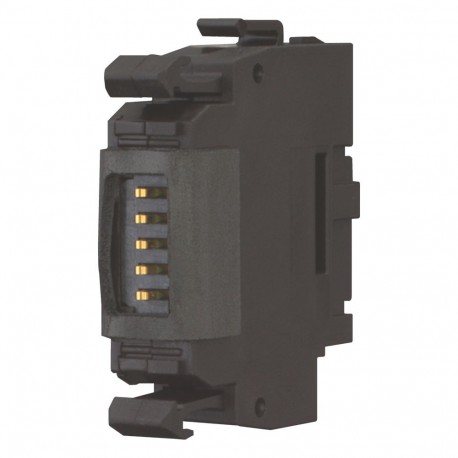

EATON - MOELLER M22-SWD-R M22-SWD-R 179293 Y7-179293 EATON ELECTRIC Function element for potentiometer, SWD, Front mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SWD-R 179293 Y7-179293 EATON ELECTRIC Function element for potentiometer, SWD, Front mount

M22-SWD-R

179293

Y7-179293

EATON - MOELLER

1 Pcs.

Function element for potentiometer, SWD, Front mount M22-SWD-R Eaton Moeller® series M22 Function element, Potentiometer, Front fixing Function element, Fixing: Front fixing, Description: Function element SmartWire-DT potentiometer, Only in conjunction with M22-R-SWD front element, Connection to SmartWire-DT: yes

Automation > Accessories/spare parts for low-voltage switch technology
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-SWD-R function element for potentiometer supports SmartWire-DT network integration for front-mounted operator controls. This interface component allows operators to adjust analog reference values on control panels while communicating parameter data directly back to the main PLC architecture.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
179293
Model Code
M22-SWD-R
EAN
4015081743797
Product Length/Depth
42 mm
Product Height
42 mm
Product Width
12.5 mm
Product Weight
0.009 kg
Certifications
CSA Class No.: 3211-07
UL File No.: E29184
CSA
UL Category Control No.: NKCR
CSA File No.: 2324643
IEC/EN 61131-2
UL
Catalog Notes
Function element SmartWire-DT potentiometer

General

Accessory/spare part type
Other
Degree of protection
IP20
Overvoltage category
Not applicable
Pollution degree
2

Ambient conditions, mechanical

Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
9 - 95 % (non-condensing, IEC/EN 60068-2-30)

Electro magnetic compatibility

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)

Communication

Connection
SmartWire-DT plug connector SWD4-8SF2-5
Connection to SmartWire-DT
Yes
Connection type
Front fixing
SWD: Plug, 8-pole
LED indicator
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network
