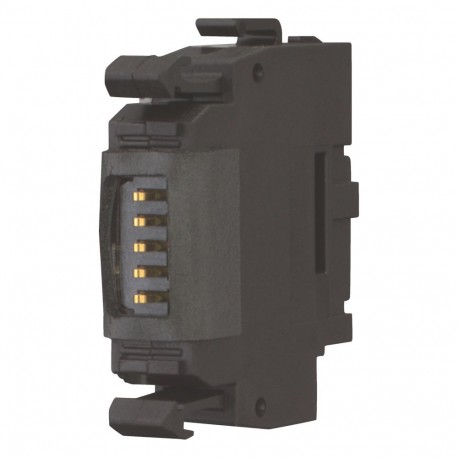

EATON - MOELLER M22-SWD-INC M22-SWD-INC 179982 Y7-179982 EATON ELECTRIC SmartWire-DT function element for encoder View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SWD-INC 179982 Y7-179982 EATON ELECTRIC SmartWire-DT function element for encoder

M22-SWD-INC

179982

Y7-179982

EATON - MOELLER

1 Pcs.

SmartWire-DT function element for encoder M22-SWD-INC Eaton Moeller® series M22 Function element, Encoder, Front fixing Function element, Fixing: Front fixing, Description: Function element SmartWire-DT encoder, Only in conjunction with M22-INC-SWD front element, Connection to SmartWire-DT: yes

Automation > Accessories/spare parts for low-voltage switch technology
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SmartWire-DT function element for encoder (M22-SWD-INC) integrates rotary encoders directly into SmartWire-DT communication networks, streamlining panel wiring and enabling seamless feedback data transmission in automated machinery.

Pricing, availability, and delivery lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
179982
Model Code
M22-SWD-INC
EAN
4015081750993
Product Length/Depth
42 mm
Product Height
42 mm
Product Width
12.5 mm
Product Weight
0.009 kg
Certifications
UL File No.: E29184
CSA File No.: 2324643
IEC/EN 61131-2
CSA Class No.: 3211-07
UL Category Control No.: NKCR
CSA
UL
Catalog Notes
Function element SmartWire-DT encoder

General

Accessory/spare part type
Other
Degree of protection
IP20
Overvoltage category
Not applicable
Pollution degree
2

Ambient conditions, mechanical

Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
9 - 95 % (non-condensing, IEC/EN 60068-2-30)

Electro magnetic compatibility

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radio interference class
Class A (EN 55011)

Communication

Connection
SmartWire-DT plug connector SWD4-8SF2-5
Connection to SmartWire-DT
Yes
Connection type
Front fixing
SWD: Plug, 8-pole
LED indicator
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
