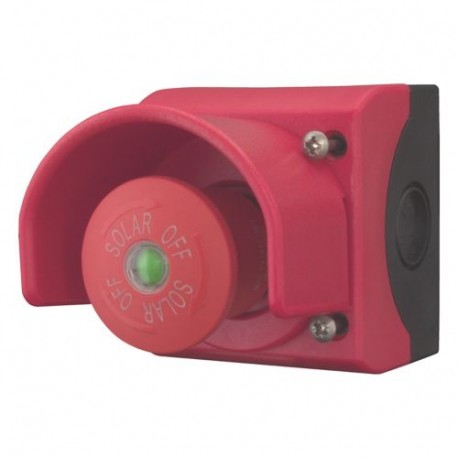

EATON - MOELLER M22-SOL-PVT45P-MPIQ M22-SOL-PVT45P-MPIQ 150673 Y7-150673 EATON ELECTRIC Fireman's switch, PV, with SOLAR laser inscribed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SOL-PVT45P-MPIQ 150673 Y7-150673 EATON ELECTRIC Fireman's switch, PV, with SOLAR laser inscribed

M22-SOL-PVT45P-MPIQ

150673

Y7-150673

EATON - MOELLER

1 Pcs.

Fireman's switch, PV, with SOLAR laser inscribed M22-SOL-PVT45P-MPIQ Eaton Moeller® series M22 Fireman's switch, PV, with SOLAR laser inscribed M22-SOL-PVT45P-MPIQ Fireman's switch, Degree of Protection: IP66, IP67, IP69K

Automation > Selector switch, complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-SOL-PVT45P-MPIQ fireman's switch is an emergency safety disconnect tailored for photovoltaic installations. Emergency shutdown devices allow safety personnel to rapidly de-energize solar arrays and mitigate electrical hazards during incidents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Rotating button
  • Suitable for lighting (EF001142): No
  • With light source (EF005905): No
  • Colour button (EF000190): Red
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): No
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X
  • Supply voltage (EF004127): 0 V
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Fireman's switch
Catalog Number
150673
Model Code
M22-SOL-PVT45P-MPIQ
EAN
4015081469482
Product Length/Depth
67 mm
Product Height
45 mm
Product Width
45 mm
Product Weight
0.043 kg
Compliances
CE

Features & Functions

Bezel color
Other
Bezel material
Plastic
Electric connection type
Screw connection

General

Degree of protection
IP67/IP69K
NEMA 4X
Opening diameter
22.5 mm

Actuator

Actuator color
Red
Actuator type
Turn button
Number of switch positions
2

Contacts

Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
