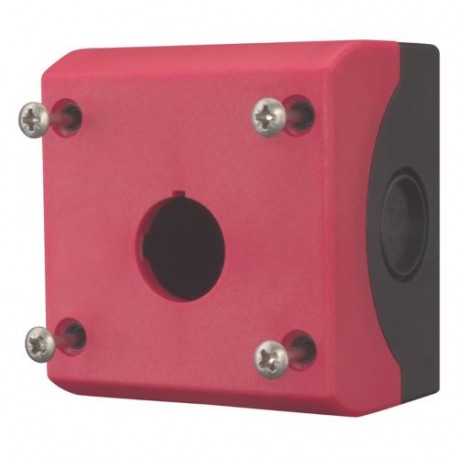

EATON - MOELLER M22-SOL-IR1Q M22-SOL-IR1Q 150646 Y7-150646 EATON ELECTRIC Surface mounting enclosure, black, red cover View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SOL-IR1Q 150646 Y7-150646 EATON ELECTRIC Surface mounting enclosure, black, red cover

M22-SOL-IR1Q

150646

Y7-150646

EATON - MOELLER

1 Pcs.

Surface mounting enclosure, black, red cover M22-SOL-IR1Q Eaton Moeller® series M22 Surface mounting enclosure, black, red cover Surface mounting enclosure, Degree of Protection: IP66, IP67, IP69K, For use with: M22-SOL-PVT45P-MPI, M22-SOL-PVT45P-MPIQ

Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
150646
Model Code
M22-SOL-IR1Q
EAN
4015081469581
Product Length/Depth
56 mm
Product Height
80 mm
Product Width
72 mm
Product Weight
0.136 kg
Compliances
CE
Catalog Notes
black with red cover

Features & Functions

Enclosure color
Red
Enclosure material
Plastic
Functions
For mounting the PV off switch

General

Degree of protection
IP67/IP69K
NEMA 4X
Opening diameter
22.5 mm
Product category
Accessories

Ambient conditions, mechanical

Mounting position
As required

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
1 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 150646 Low-voltage industrial controls and switchgear (EC000200)
Feature Name Feature Value
Number of command positions (EF001372) 1
Construction type housing (EF004008) Surface mounting housing
Housing material (EF001596) Plastic
Housing material quality (EF024143) Other
Diameter openings (EF000243) 22.5 mm
Colour housing cover (EF001373) Red
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X
Width (EF000008) 72 mm
Height (EF000040) 80 mm
Depth (EF000049) 56 mm
