View larger
Images are for illustrative purposes only. Please refer to data sheet for details

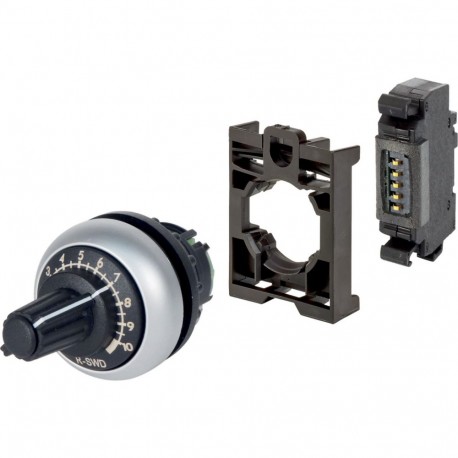

M22-R-SWD-R 179294 Y7-179294 EATON ELECTRIC Potentiometer, mounting adaptor, SmartWire-DT function element
M22-R-SWD-R
179294
Y7-179294
EATON - MOELLER
1 Pcs.
Potentiometer, mounting adaptor, SmartWire-DT function element
M22-R-SWD-R
Eaton Moeller® series M22 Potentiometer, mounting adaptor, SmartWire-DT function element
Bundle, RMQ-Titan, Description: Standard pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: yes
Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
179294
Model Code
M22-R-SWD-R
EAN
4015081743803
Product Length/Depth
82 mm
Product Height
30 mm
Product Width
44 mm
Product Weight
0.031 kg
Certifications
CSA
CSA File No.: 2324643
UL
CSA Class No.: 3211-07
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 2324643
UL
CSA Class No.: 3211-07
UL Category Control No.: NKCR
UL File No.: E29184
Catalog Notes
Can be ordered using a single article no.
| Feature Name | Feature Value |
|---|---|
| Resistance (EF002431) | 0 Ohm |
| Power consumption (EF000346) | 0 W |
| Hole diameter (EF000079) | 22.5 mm |
| Number of revolutions (EF006943) | 1 |
| Type of electric connection (EF003961) | Screw connection |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
