View larger
Images are for illustrative purposes only. Please refer to data sheet for details

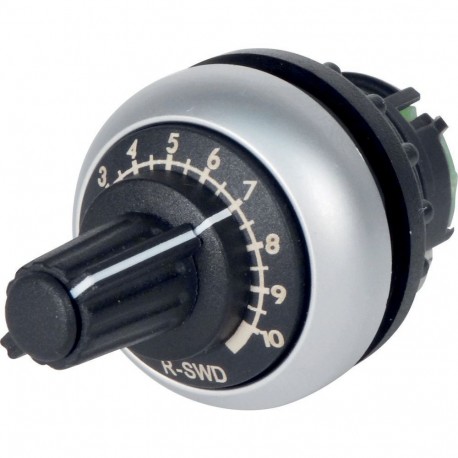

M22-R-SWD 179292 Y7-179292 EATON ELECTRIC Potentiometer, SWD ready, Front mount
M22-R-SWD
179292
Y7-179292
EATON - MOELLER
1 Pcs.
Potentiometer, SWD ready, Front mount
M22-R-SWD
Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, Bezel: titanium
Potentiometer, Subrange: SmartWire-DT RMQ connections, RMQ design: Classical, Part group reference (e.g. DIL): M22, Mounting hole diameter: 22.5 mm, Description: Front element SmartWire-DT potentiometer, Only in conjunction with M22-SWD-R function element, Function: For connecting to SmartWire-DT, Degree of Protection: IP65, Bezel: titanium, Connection to SmartWire-DT: yes, For use with: M22-SWD-R, Standards: IEC/EN 60947
Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
179292
Model Code
M22-R-SWD
EAN
4015081743780
Product Length/Depth
48 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.019 kg
Certifications
IEC/EN 60947
CSA File No.: 2324643
CSA Class No.: 3211-07
CSA
UL File No.: E29184
UL Category Control No.: NKCR
UL
CSA File No.: 2324643
CSA Class No.: 3211-07
CSA
UL File No.: E29184
UL Category Control No.: NKCR
UL
| Feature Name | Feature Value |
|---|---|
| Resistance (EF002431) | 0 Ohm |
| Power consumption (EF000346) | 0 W |
| Hole diameter (EF000079) | 22.5 mm |
| Number of revolutions (EF006943) | 1 |
| Type of electric connection (EF003961) | Screw connection |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
