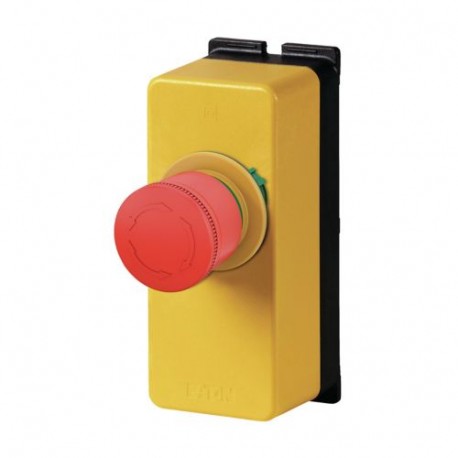

M22-PVT30/FK02/FIY1 199353 EATON ELECTRIC Full Flat keypad Emergency stop button D 30 mm Interlocking by Gir..
M22-PVT30/FK02/FIY1
199353
Y7-199353
EATON - MOELLER
1 Pcs.
Automation > Control circuit devices combination in enclosure
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-PVT30/FK02/FIY1 full flat keypad emergency stop button provides reliable safety interlocking via a secure mechanical twist mechanism. Safety engineers incorporate these standardized mushroom-operated devices into control panels to ensure immediate power interruption when safety protocols are triggered.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Number of push buttons (EF005558): 0
- Number of indicator lights (EF001965): 0
- Number of key switches (EF005590): 0
- Number of selector switches (EF005567): 0
- Number of mushroom-shaped push-buttons (EF006670): 1
- Suitable for emergency stop (EF001433): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 24 V
- Rated control supply voltage AC 60 Hz (EF003979): 24 V
- Rated control supply voltage DC (EF003980): 24 V
- Colour housing cover (EF001373): Yellow
- Housing colour (EF000136): Yellow
- Housing material (EF001596): Plastic
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 2
- Number of contacts as change-over contact (EF008257): 0
More info
▲General specifications
EAC
UL
CSA
CCC
CSA Class No.: 3211-03
CSA file No. 012528
DNV
GL
IEC/EN 60947
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
LR
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
VDE 0660
Features & Functions
General
NEMA Other
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
