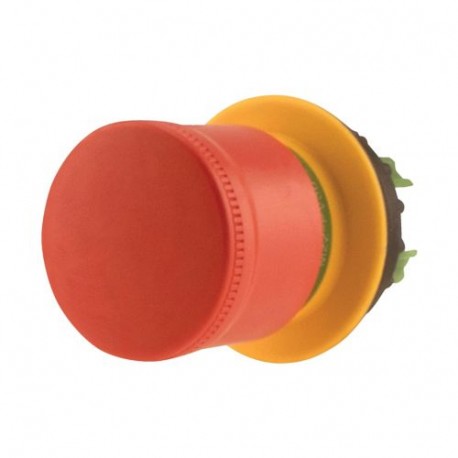

M22-PV30 197535 Y7-197535 EATON ELECTRIC Emergency Stop Mini Pushbutton D 30 mm Traction unlocking
M22-PV30
197535
Y7-197535
EATON - MOELLER
5 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller emergency stop mini pushbutton, product code M22-PV30, is designed to provide immediate safety shutdown capabilities on industrial machinery and control stations. Operators engage the device by pressing the red mushroom head to halt dangerous operations and protect equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 30 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): No
- Suitable for emergency stop (EF001433): Yes
More info
▲General specifications
CE
EN ISO 13850
CSA
EAC
EN 60947-5-1
CCC
Machines 2006/42/EG
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
Features & Functions
Classical
General
NEMA 4X
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Actuator
Switching function latching
