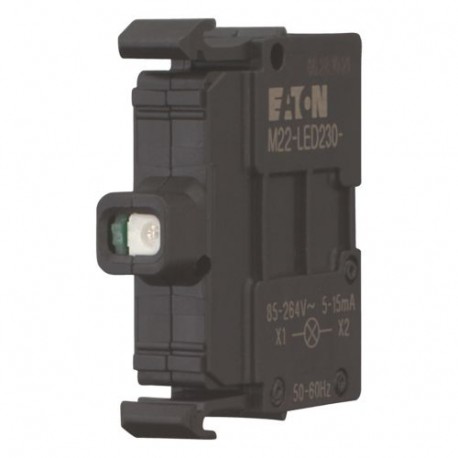

M22-LED230H-WQ Illuminated element LED, front mount, + response threshold M22-LED230H-* Eaton Moeller® series M22 Illuminated element LED, front mount, + response threshold LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 207 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 12 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Color: - Selectable → Notes -, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-LED230H-* is an illuminated LED element engineered for front-mount installations on control stations and pilot devices. These components deliver reliable optical status indication on machinery, control desks, and electrical distribution boards to enhance operator safety and oversight. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 207 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 207 V
  • Rated voltage Ue at DC (EF007031): 0 V
  • Voltage type for actuating (EF008242): AC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
106521
Model Code
M22-LED230H-*
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
37 mm
Product Weight
0.011 kg
Certifications
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CSA File No.: 012528
UL File No.: E29184
IEC 60947-5-1
UL Category Control No.: NKCR
CE
CSA
CSA-C22.2 No. 14-05
UL
IEC/EN 60947-5
UL 508

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
