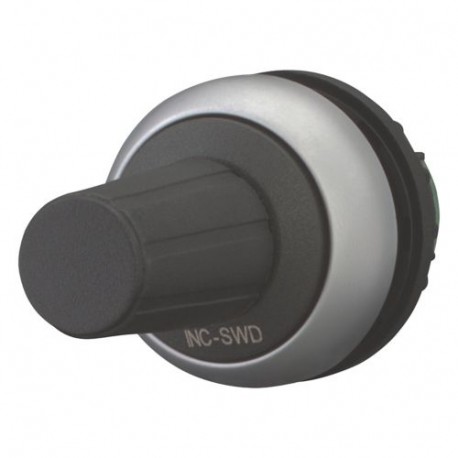

EATON - MOELLER M22-INC-SWD M22-INC-SWD 179981 Y7-179981 EATON ELECTRIC Encoder, front element for SmartWire-DT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-INC-SWD 179981 Y7-179981 EATON ELECTRIC Encoder, front element for SmartWire-DT

M22-INC-SWD

179981

Y7-179981

EATON - MOELLER

1 Pcs.

Encoder, front element for SmartWire-DT M22-INC-SWD Front element, Bezel: titanium Front element, Description: Front element SmartWire-DT encoder, With actuation function, Only in conjunction with M22-SWD-INC function element, Connection to SmartWire-DT: yes

Automation > Accessories/spare parts for low-voltage switch technology
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller encoder front element for SmartWire-DT operates as a specialized interface module that integrates positional feedback devices directly into distributed industrial communication networks. This component simplifies machine wiring by transmitting sensor data over a streamlined fieldbus architecture rather than traditional multi-core cabling.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Front element
Catalog Number
179981
Model Code
M22-INC-SWD
EAN
4015081750986
Product Length/Depth
52.5 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.022 kg
Certifications
CSA Class No.: 3211-07
UL
UL Category Control No.: NKCR
CSA
CSA File No.: 2324643
UL File No.: E29184
IEC/EN 60947
Catalog Notes
Front element SmartWire-DT encoder

Features & Functions

Bezel color
Titanium
Design
Classical
Functions
For connecting to SmartWire-DT
Actuation function

General

Accessory/spare part type
Other
Degree of protection
IP65
Type
Encoder

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Communication

Connection to SmartWire-DT
Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
