View larger
Images are for illustrative purposes only. Please refer to data sheet for details

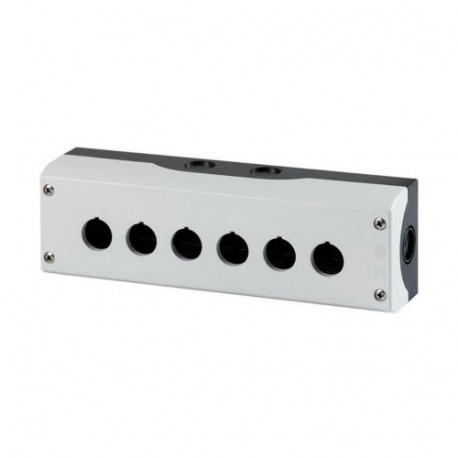

M22-I6-* 197636 Y7-197636 EATON ELECTRIC M22-I6-*
M22-I6-*
197636
Y7-197636
EATON - MOELLER
1 Pcs.
M22-I6-*
Eaton Moeller® series M22 Surface-mounting enclosure, RAL 7035, Individually markable with pushbutton configurator, Number of locations: 6, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side)
Housing: Insulated material, With high-grade steel screws, Individually markable with pushbutton configurator, Number of locations: 6, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 6 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
197636
Model Code
M22-I6-*
Product Length/Depth
80 mm
Product Height
56 mm
Product Width
252 mm
Product Weight
0.362 kg
Compliances
CE
Catalog Notes
Individually markable with pushbutton configurator
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 6 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 22.5 mm |
| Colour housing cover (EF001373) | Grey |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 252 mm |
| Height (EF000040) | 56 mm |
| Depth (EF000049) | 80 mm |
