M22-I4-* 197635 Y7-197635 EATON ELECTRIC M22-I4-*
M22-I4-*
197635
Y7-197635
EATON - MOELLER
1 Pcs.
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

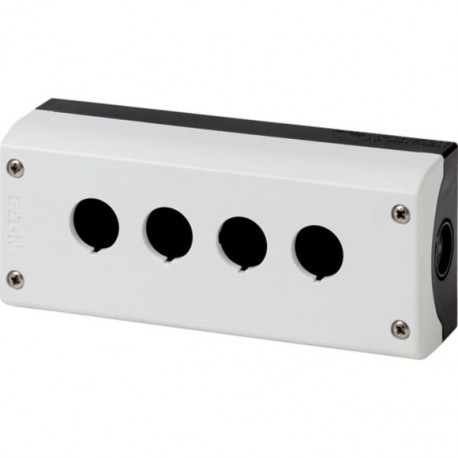

A surface mounting plastic enclosure engineered to accommodate multiple command devices and operator actuators on industrial machinery. Such enclosures provide robust protection against dust and moisture while organizing control interfaces for machine operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 4
- Construction type housing (EF004008): Surface mounting housing
- Housing material (EF001596): Plastic
- Diameter openings (EF000243): 22.5 mm
- Colour housing cover (EF001373): Grey
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X
- Width (EF000008): 186 mm
- Height (EF000040): 56 mm
- Depth (EF000049): 80 mm
More info
▲General specifications
Features & Functions
2 x M20 (cable entry knockouts at the top)
2 x M20/25 (cable entry knockout at the side, 1 x each side)
General
IP67/IP69K
