M22-I1-*

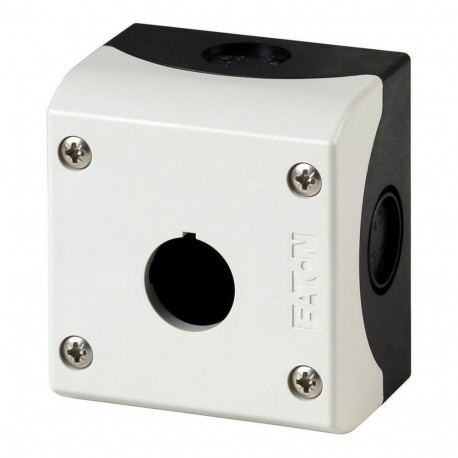

Eaton Moeller® series M22 Surface mounting enclosure, 1 mounting location, M22
Housing: Insulated material, With high-grade steel screws, Individually markable with pushbutton configurator, Number of locations: 1, Cable entry: rear: 2 x M16, at top: 1 x M20, lateral: 2 x M20/M25 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 1 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-I1-* surface mounting enclosure provides a reliable single-station housing for 22.5mm control and signaling devices. Enclosures of this type protect internal contact blocks and wiring connections from environmental contaminants in industrial plants.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Construction type housing (EF004008): Surface mounting housing
- Housing material (EF001596): Plastic
- Diameter openings (EF000243): 22.5 mm
- Colour housing cover (EF001373): Grey
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X
- Width (EF000008): 82 mm
- Height (EF000040): 72 mm
- Depth (EF000049): 74 mm
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
197631
Model Code
M22-I1-*
Product Length/Depth
74 mm
Product Height
72 mm
Product Width
82 mm
Product Weight
0.134 kg
Compliances
CE
Catalog Notes
Individually markable with pushbutton configurator
Features & Functions
Enclosure color
Gray
Enclosure material
Plastic
Fitted with:
High-grade steel screws
Knockouts
2 x M20/25 (cable entry knockout at the side, 1 x each side)
2 x M16 (cable entry knockouts at the rear)
1 x M20 (cable entry knockout at the top)
2 x M16 (cable entry knockouts at the rear)
1 x M20 (cable entry knockout at the top)
Number of locations
1
RAL-number
7035
General
Degree of protection
NEMA 4X
IP67/IP69K
IP67/IP69K
Opening diameter
22.5 mm
Product category
RMQ-Titan
Ambient conditions, mechanical
Mounting position
As required
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Communication
Connection to SmartWire-DT
No
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
