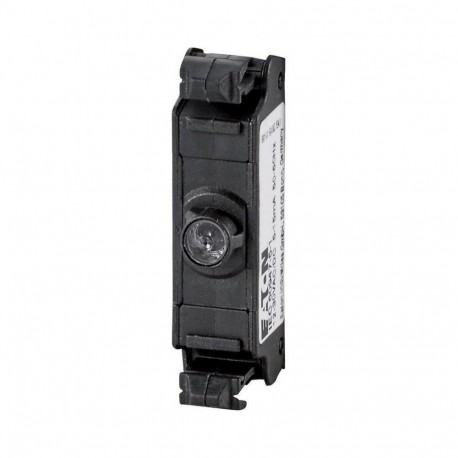

EATON - MOELLER M22-FLED-W M22-FLED-W 180795 Y7-180795 EATON ELECTRIC LED element, Flat Rear, white, front mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-FLED-W 180795 Y7-180795 EATON ELECTRIC LED element, Flat Rear, white, front mounting

M22-FLED-W

180795

Y7-180795

EATON - MOELLER

1 Pcs.

LED element, Flat Rear, white, front mounting M22-FLED-W Eaton Moeller® series M22 LED element, Flat Rear, white, front mounting LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz (Standard 24 V AC/DC) V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A white flat rear LED element from Eaton Moeller, designated as M22-FLED-W, provides internal illumination for low-profile command and signaling devices mounted in space-constrained control panels. Rear-mounting LED blocks illuminate pushbutton lenses evenly to indicate active machine states in commercial and industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 12 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 12 V
  • Rated voltage Ue at DC (EF007031): 12 V
  • Voltage type for actuating (EF008242): AC/DC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Colour light source (EF001402): White
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
180795
Model Code
M22-FLED-W
EAN
4015081759644
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
14 mm
Product Weight
0.004 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
UL
UL 508
UL Category Control No.: NKCR
IEC/EN 60947-5
UL File No.: E29184
CSA
CE
IEC 60947-5-1
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
