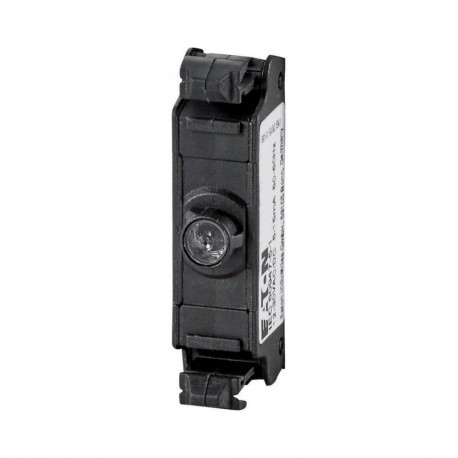

EATON - MOELLER M22-FLED-RGB M22-FLED-RGB 180800 Y7-180800 EATON ELECTRIC LED element, Flat Rear, red/green/blue, front mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-FLED-RGB 180800 Y7-180800 EATON ELECTRIC LED element, Flat Rear, red/green/blue, front mounting

M22-FLED-RGB

180800

Y7-180800

EATON - MOELLER

20 Pcs.

LED element, Flat Rear, red/green/blue, front mounting M22-FLED-RGB Eaton Moeller® series M22 LED element, Flat Rear, red/green/blue, front mounting LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 24 V DC V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.36 W, at 24 V, Color: red/green/blue, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller LED element provides multi-color visual status indication for flat rear control stations and panel assemblies. It is widely integrated into modern automation equipment to simplify installation and provide customizable signaling states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated: No
  • With integrated voltage decreasing resistor: No
  • With light source: Yes
  • With integrated diode: Yes
  • Rated voltage Ue at AC 50 Hz: 0 V
  • Rated voltage Ue at AC 60 Hz: 0 V
  • Rated voltage Ue at DC: 24 V
  • Voltage type for actuating: DC
  • Lamp type: LED
  • Connection type auxiliary circuit: Spring clamp connection
  • Colour light source: Multi colour
  • Type of fastening: Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
180800
Model Code
M22-FLED-RGB
EAN
4015081759743
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
14 mm
Product Weight
0.004 kg
Certifications
UL
IEC/EN 60947-5
CSA
UL 508
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CE
IEC 60947-5-1
UL File No.: E29184
CSA-C22.2 No. 14-05
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
