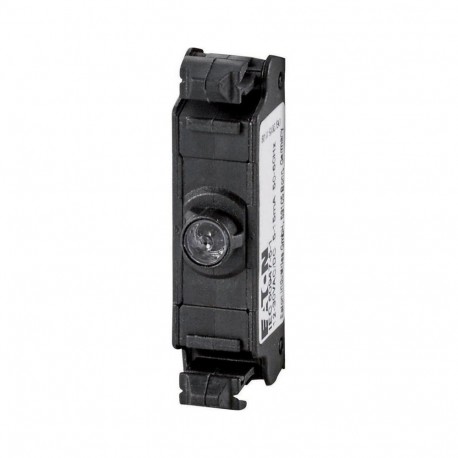

M22-FLED-RG 180799 Y7-180799 EATON ELECTRIC LED element, Flat Rear, red/green, front mounting
M22-FLED-RG
180799
Y7-180799
EATON - MOELLER
1 Pcs.
LED element, Flat Rear, red/green, front mounting
M22-FLED-RG
Eaton Moeller® series M22 LED element, Flat Rear, red/green, front mounting
LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 24 V DC V, Rated operational current: Ie= 10 - 15 mA, Power consumption: Pmax.= 0.36 W, at 24 V, Color: Red/green, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
180799
Model Code
M22-FLED-RG
EAN
4015081759736
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
14 mm
Product Weight
0.004 kg
Certifications
UL 508
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
UL File No.: E29184
CSA Class No.: 3211-03
IEC 60947-5-1
CSA File No.: 012528
CSA
UL Category Control No.: NKCR
UL
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
UL File No.: E29184
CSA Class No.: 3211-03
IEC 60947-5-1
CSA File No.: 012528
CSA
UL Category Control No.: NKCR
UL
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
Features & Functions
Color
Green
Red
Red
Fitted with:
Light source
Diode
Diode
Light color
Multi-colored
General
Degree of protection
IP20
Lifespan, electrical
100,000 h (at 25°C, according to EN60064)
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
4000 V AC
Voltage type
DC
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
50 g, Mechanical, according to IEC/EN 60068-2-27, Half-Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
85 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Terminal capacity (flexible with ferrule)
Use WAGO Variocrimp 4 crimping tool; please enquire for others
1 x (0.25 - 1) mm²
1 x (0.25 - 1) mm²
Terminal capacity (solid)
1 x (075 - 1.5) mm² Can be plugged without tools
1 x (0.2 - 1.5) mm²
1 x (0.2 - 1.5) mm²
Terminal capacity (solid/stranded AWG)
20
Terminal capacity (stranded)
1 x (0.2 - 1.5) mm²
Electrical rating
Power consumption
Max. 0.36 W
Rated insulation voltage (Ui)
250 V
Rated operational current (Ie) - min
10 mA
Rated operational current (Ie) - max
15 mA
Rated operational voltage (Ue) at AC - max
0 V
Rated operational voltage (Ue) at AC - min
0 V
Rated operational voltage (Ue) at DC - max
24 V
Rated operational voltage (Ue) at DC - min
24 V
Communication
Connection to SmartWire-DT
No
Connection type
Front fixing
| Feature Name | Feature Value |
|---|---|
| Transformer integrated (EF001358) | No |
| With integrated voltage decreasing resistor (EF001399) | No |
| With light source (EF005905) | Yes |
| With integrated diode (EF001400) | Yes |
| Lamp holder (EF000048) | None |
| Rated voltage Ue at AC 50 Hz (EF007029) | 0 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 0 V |
| Rated voltage Ue at DC (EF007031) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Lamp type (EF002423) | LED |
| Connection type auxiliary circuit (EF006820) | Spring clamp connection |
| Colour light source (EF001402) | Multi colour |
| Type of fastening (EF002442) | Front fastening |
