EATON - MOELLER M22-FLED-R M22-FLED-R 180798 Y7-180798 EATON ELECTRIC LED element, Flat Rear, red, front mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

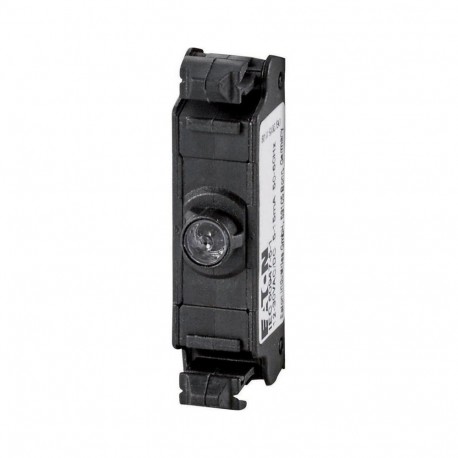

M22-FLED-R 180798 Y7-180798 EATON ELECTRIC LED element, Flat Rear, red, front mounting

M22-FLED-R

180798

Y7-180798

EATON - MOELLER

20 Pcs.

LED element, Flat Rear, red, front mounting M22-FLED-R Eaton Moeller® series M22 LED element, Flat Rear, red, front mounting LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz (Standard 24 V AC/DC) V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A flat rear LED element functions as an internal light source for operator control units, illuminating pushbuttons and indicator lights on industrial control panels. Technicians rely on these modules to provide clear visual feedback regarding machinery states in automated manufacturing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated (EF001358): No
  • With integrated voltage decreasing resistor (EF001399): No
  • With light source (EF005905): Yes
  • With integrated diode (EF001400): Yes
  • Rated voltage Ue at AC 50 Hz (EF007029): 12 V
  • Rated voltage Ue at AC 60 Hz (EF007030): 12 V
  • Rated voltage Ue at DC (EF007031): 12 V
  • Voltage type for actuating (EF008242): AC/DC
  • Lamp type (EF002423): LED
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Colour light source (EF001402): Red
  • Type of fastening (EF002442): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
180798
Model Code
M22-FLED-R
EAN
4015081759729
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
14 mm
Product Weight
0.004 kg
Certifications
CSA
IEC 60947-5-1
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
UL File No.: E29184
CSA-C22.2 No. 14-05
CE
CSA-C22.2 No. 94-91
UL 508
CSA Class No.: 3211-03
CSA File No.: 012528
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
