M22-FLED-G-HP 197143 Y7-197143 EATON ELECTRIC M22-FLED-G-HP
M22-FLED-G-HP
197143
Y7-197143
EATON - MOELLER
1 Pcs.
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

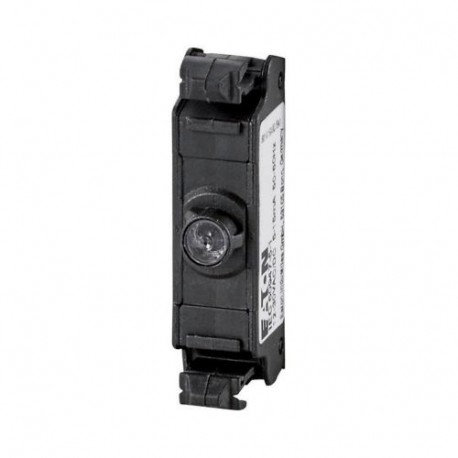

An Eaton Moeller M22-FLED-G-HP 197143 Y7-197143 Eaton Electric M22-FLED-G-HP functions as an indicator light module designed to snap into operator control units for reliable visual feedback. Industrial engineers use these modules in control desks and switchboards to signal operational status, system readiness, or fault conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Transformer integrated: No
- With integrated voltage decreasing resistor: No
- With light source: Yes
- With integrated diode: Yes
- Rated voltage Ue at AC 50 Hz: 0 V
- Rated voltage Ue at AC 60 Hz: 0 V
- Rated voltage Ue at DC: 18 V
- Voltage type for actuating: AC/DC
- Lamp type: LED
- Connection type auxiliary circuit: Screw connection
- Colour light source: Green
- Type of fastening: Front fastening
More info
▲General specifications
UL
UL Category Control No.: NKCR
CSA Class No.: 3211-03
IEC/EN 60947-5
UL 508
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC 60947-5-1
CE
CSA-C22.2 No. 14-05
UL File No.: E29184
Features & Functions
Diode
General
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Electro magnetic compatibility
Terminal capacities
1 x (0.25 - 1) mm²
1 x (0.2 - 1.5) mm²
