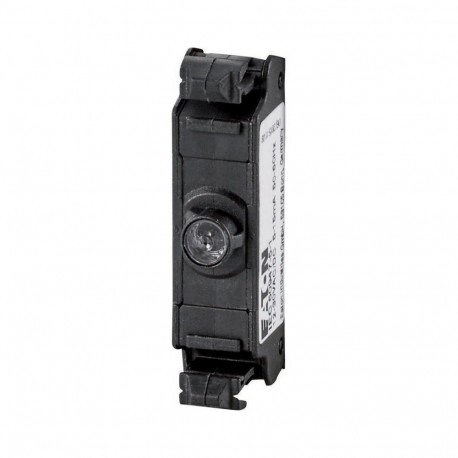

M22-FLED-G 180797 Y7-180797 EATON ELECTRIC LED element, Flat Rear, green, front mounting
M22-FLED-G
180797
Y7-180797
EATON - MOELLER
20 Pcs.
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An LED element, Flat Rear, green, front mounting functions as an illumination source for pilot lights and pushbuttons in industrial control panels. Technicians install these compact lighting blocks to give clear visual indications on machine control desks and distribution enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Transformer integrated (EF001358): No
- With integrated voltage decreasing resistor (EF001399): No
- With light source (EF005905): Yes
- With integrated diode (EF001400): Yes
- Rated voltage Ue at AC 50 Hz (EF007029): 12 V
- Rated voltage Ue at AC 60 Hz (EF007030): 12 V
- Rated voltage Ue at DC (EF007031): 12 V
- Voltage type for actuating (EF008242): AC/DC Lamp type (EF002423): LED
- Connection type auxiliary circuit (EF006820): Spring clamp connection
- Colour light source (EF001402): Green
- Type of fastening (EF002442): Front fastening
More info
▲General specifications
UL
UL 508
UL Category Control No.: NKCR
CSA Class No.: 3211-03
IEC/EN 60947-5
CSA
CSA-C22.2 No. 14-05
UL File No.: E29184
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
Features & Functions
Diode
General
Ambient conditions, mechanical
Climatic environmental conditions
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Use WAGO Variocrimp 4 crimping tool; please enquire for others
1 x (075 - 1.5) mm² Can be plugged without tools
