View larger
Images are for illustrative purposes only. Please refer to data sheet for details

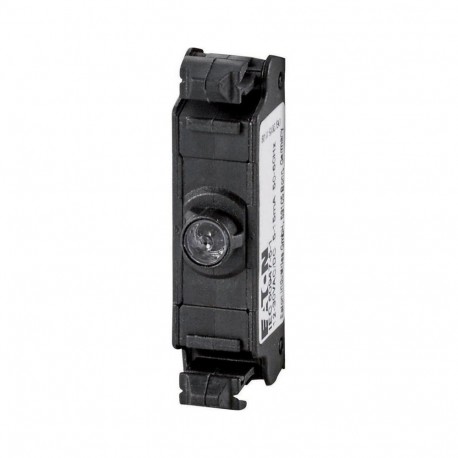

M22-FLED-B-HP 197145 Y7-197145 EATON ELECTRIC M22-FLED-B-HP
M22-FLED-B-HP
197145
Y7-197145
EATON - MOELLER
1 Pcs.
M22-FLED-B-HP
Eaton Moeller® series M22 LED element, Flat Rear, blue, front mounting, High Performance
LED element, Flat Rear, blue, front mounting, High Performance
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
197145
Model Code
M22-FLED-B-HP
EAN
4015080895268
Product Length/Depth
37.8 mm
Product Height
14.4 mm
Product Width
10 mm
Product Weight
0.004 kg
Certifications
UL 508
CE
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
UL Category Control No.: NKCR
UL File No.: E29184
CSA
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
CSA File No.: 012528
IEC 60947-5-1
CE
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
UL Category Control No.: NKCR
UL File No.: E29184
CSA
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
CSA File No.: 012528
IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Transformer integrated (EF001358) | No |
| With integrated voltage decreasing resistor (EF001399) | No |
| With light source (EF005905) | Yes |
| With integrated diode (EF001400) | Yes |
| Lamp holder (EF000048) | None |
| Rated voltage Ue at AC 50 Hz (EF007029) | 0 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 0 V |
| Rated voltage Ue at DC (EF007031) | 18 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Lamp type (EF002423) | LED |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Colour light source (EF001402) | Blue |
| Type of fastening (EF002442) | Front fastening |
