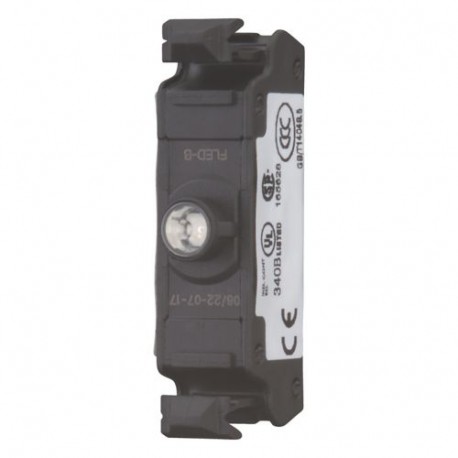

EATON - MOELLER M22-FLED-B M22-FLED-B 180796 Y7-180796 EATON ELECTRIC LED element, Flat Rear, blue, front mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-FLED-B 180796 Y7-180796 EATON ELECTRIC LED element, Flat Rear, blue, front mounting

M22-FLED-B

180796

Y7-180796

EATON - MOELLER

20 Pcs.

LED element, Flat Rear, blue, front mounting M22-FLED-B Eaton Moeller® series M22 LED element, Flat Rear, blue, front mounting LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz (Standard 24 V AC/DC) V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The M22-FLED-B Eaton Moeller LED element provides flat-rear illumination for pushbuttons and control switches within commercial and industrial machinery. These components facilitate clean panel designs while ensuring high-visibility status indication for operators monitoring complex automation workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated: No
  • With integrated voltage decreasing resistor: No
  • With light source: Yes
  • With integrated diode: Yes
  • Rated voltage Ue at AC 50 Hz: 12 V
  • Rated voltage Ue at AC 60 Hz: 12 V
  • Rated voltage Ue at DC: 12 V
  • Voltage type for actuating: AC/DC
  • Lamp type: LED
  • Connection type auxiliary circuit: Spring clamp connection
  • Colour light source: Blue
  • Type of fastening: Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
180796
Model Code
M22-FLED-B
EAN
4015081759705
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
14 mm
Product Weight
0.004 kg
Certifications
UL File No.: E29184
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA Class No.: 3211-03
UL
IEC 60947-5-1
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
UL 508
CSA
CE
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
