View larger
Images are for illustrative purposes only. Please refer to data sheet for details
M22-FI4-* 197641 Y7-197641 EATON ELECTRIC M22-FI4-*
M22-FI4-*
197641
Y7-197641
EATON - MOELLER
1 Pcs.
M22-FI4-*

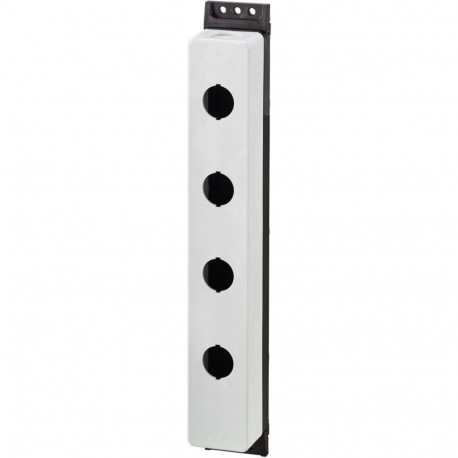

Eaton Moeller® series M22 Surface mounting enclosure, 4 mounting locations, M22, flat
Surface mounting enclosure, 4 mounting locations, M22, flat
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
197641
Model Code
M22-FI4-*
Product Length/Depth
279 mm
Product Height
44 mm
Product Width
43 mm
Product Weight
0.201 kg
Certifications
UL 508
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CE marking
UL Listed
CSA File No.: 012528
CSA certified
UL File No.: E29184
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CE marking
UL Listed
CSA File No.: 012528
CSA certified
UL File No.: E29184
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
Catalog Notes
Individually markable with pushbutton configurator
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 4 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 22.5 mm |
| Colour housing cover (EF001373) | Grey |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 43 mm |
| Height (EF000040) | 44 mm |
| Depth (EF000049) | 279 mm |
