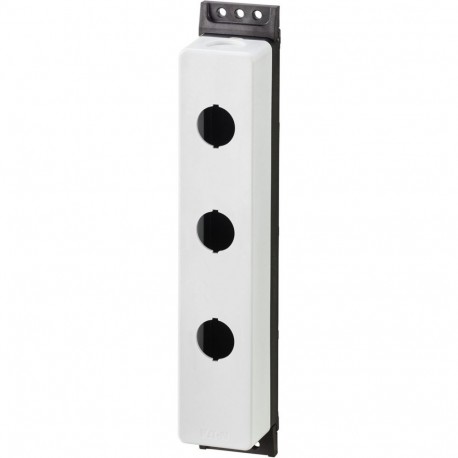

EATON - MOELLER M22-FI3-* M22-FI3-* 197640 Y7-197640 EATON ELECTRIC M22-FI3-* View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-FI3-* 197640 Y7-197640 EATON ELECTRIC M22-FI3-*

M22-FI3-*

197640

Y7-197640

EATON - MOELLER

1 Pcs.

M22-FI3-* Eaton Moeller® series M22 Surface mounting enclosure, RAL 7035, Individually markable with pushbutton configurator, Number of locations: 3, Cable entry: rear: 1 x M20, lateral: 2 x M20 (1 x each side) Housing: Insulated material, With high-grade steel screws, Individually markable with pushbutton configurator, Number of locations: 3, Cable entry: rear: 1 x M20, lateral: 2 x M20 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 3 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, EMERGENCY-STOP/EMERGENCY OFF buttons with yellow label, Flat rear contact elements M22-FK..., Flat Rear LED elements M22-FLED-…

Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22-FI3-* from Eaton Moeller is an industrial surface mounting enclosure configured to hold multiple control devices in complex automation arrangements. Protective enclosures of this style provide secure physical containment for command devices, ensuring reliable human-machine interaction in demanding industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 3
  • Construction type housing (EF004008): Surface mounting housing
  • Housing material (EF001596): Plastic
  • Diameter openings (EF000243): 22.5 mm
  • Colour housing cover (EF001373): Grey
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X
  • Width (EF000008): 43 mm
  • Height (EF000040): 44 mm
  • Depth (EF000049): 223 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
197640
Model Code
M22-FI3-*
Product Length/Depth
223 mm
Product Height
44 mm
Product Width
43 mm
Product Weight
0.166 kg
Certifications
IEC/EN 60947-5
UL Listed
CSA File No.: 012528
CSA certified
CE marking
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL 508
CSA-C22.2 No. 94-91
UL File No.: E29184
Catalog Notes
Individually markable with pushbutton configurator
