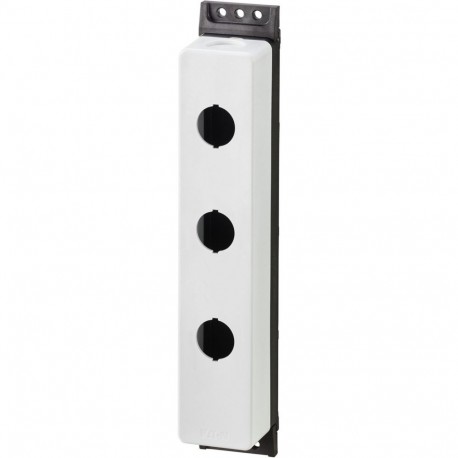

M22-FI3 197233 Y7-197233 EATON ELECTRIC Surface mounting enclosure, flat, 3 mounting locations, M22
M22-FI3
197233
Y7-197233
EATON - MOELLER
1 Pcs.
Surface mounting enclosure, flat, 3 mounting locations, M22
M22-FI3
Eaton Moeller® series M22 Surface mounting enclosure, flat, 3 mounting locations, M22
Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 3, Cable entry: rear: 1 x M20, lateral: 2 x M20 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 3 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, EMERGENCY-STOP/EMERGENCY OFF buttons with yellow label, Flat rear contact elements M22-FK..., Flat Rear LED elements M22-FLED-…
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller surface mounting enclosure, flat, 3 mounting locations, M22 provides a structured enclosure solution for multi-button operator stations. Industrial engineers utilize these housings to mount control and signaling devices securely on machine frames or walls. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 3
- Construction type housing (EF004008): Surface mounting housing
- Housing material (EF001596): Plastic
- Diameter openings (EF000243): 22.5 mm
- Colour housing cover (EF001373): Grey
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X
- Width (EF000008): 43 mm
- Height (EF000040): 44 mm
- Depth (EF000049): 223 mm
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
197233
Model Code
M22-FI3
EAN
4015080893042
Product Length/Depth
223 mm
Product Height
44 mm
Product Width
43 mm
Product Weight
0.166 kg
Certifications
CSA Class No.: 3211-03
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
Features & Functions
Enclosure color
Gray
Enclosure material
Plastic
Fitted with:
High-grade steel screws
Knockouts
1 x M20 (cable entry knockouts at the rear)
2 x M20 (cable entry knockout at the side, 1 x each side)
2 x M20 (cable entry knockout at the side, 1 x each side)
Number of locations
3
RAL-number
7035
General
Degree of protection
NEMA 4X
IP67/IP69K
IP67/IP69K
Opening diameter
22.5 mm
Product category
RMQ-Titan
Ambient conditions, mechanical
Mounting position
As required
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Communication
Connection to SmartWire-DT
No
Contacts
Force for positive opening - min
0 N
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
