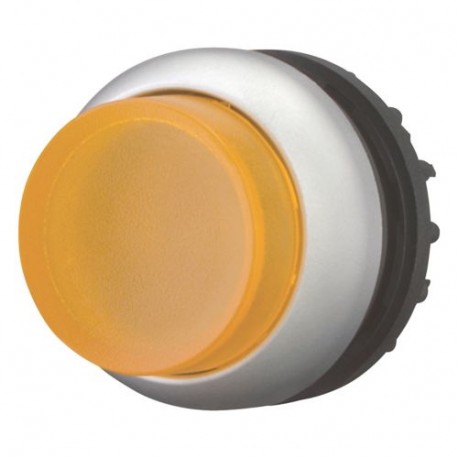

EATON - MOELLER M22-DRLH-A M22-DRLH-A 167435 Y7-167435 EATON ELECTRIC Illuminated pushbutton actuator, raised, amber, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRLH-A 167435 Y7-167435 EATON ELECTRIC Illuminated pushbutton actuator, raised, amber, maintained

M22-DRLH-A

167435

Y7-167435

EATON - MOELLER

5 Pcs.

Illuminated pushbutton actuator, raised, amber, maintained M22-DRLH-A Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, high, maintained, orange, Blank, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: high, maintained, button plate: orange, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-DRLH-A illuminated pushbutton actuator serves as a critical operator control point on industrial machinery, allowing personnel to issue maintained commands and monitor system statuses. These panel-mounted devices are standard across automation systems for initiating sequences, pausing operations, or signaling machine modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Orange
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
167435
Model Code
M22-DRLH-A
EAN
4015081639359
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947
UL File No.: E29184
UL
IEC/EN 60947-5
CSA File No.: 012528
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
UL 508
VDE 0660
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
