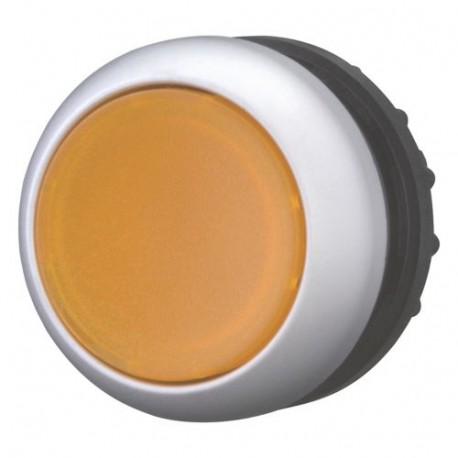

M22-DRL-A 167431 Y7-167431 EATON ELECTRIC Illuminated pushbutton actuator, flush, amber, maintained
M22-DRL-A
167431
Y7-167431
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller M22-DRL-A illuminated pushbutton actuator features an orange lens and maintained switching action for reliable signal input on electrical machinery control desks. Maintained push-buttons remain in their activated state until manually reset, serving key control roles in industrial workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Orange
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL File No.: E29184
UL
VDE 0660
CSA Class No.: 3211-03
IEC/EN 60947-5
UL 508
IEC/EN 60947
UL Category Control No.: NKCR
CE
CSA
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
IP67
NEMA 13
NEMA 12
NEMA 3R
IP69K
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Maintained
