View larger
Images are for illustrative purposes only. Please refer to data sheet for details

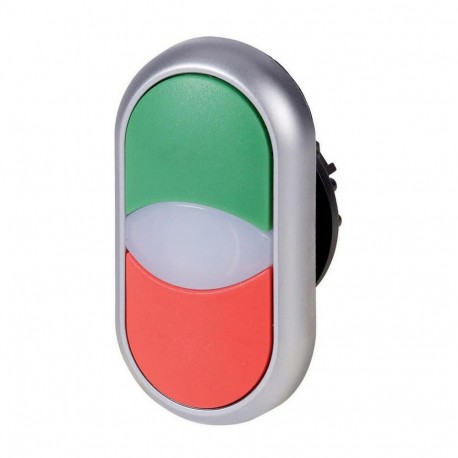

M22-DDLM-*-*-* 107062 Y7-107062 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, white , ..
M22-DDLM-*-*-*
107062
Y7-107062
EATON - MOELLER
1 Pcs.
Double actuator pushbutton, +indicator light, flush, white , white, off switch raised black, facility for inscription
M22-DDLM-*-*-*
Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Pushbutton actuator I and indicator light flush, pushbutton actuator 0 extended, momentary, White lens, selectable, individual facility for inscription, Bezel: titanium
Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Pushbutton actuator I and indicator light flush, pushbutton actuator 0 extended, momentary, Description: White lens, button plate: selectable, Button plate individual facility for inscription, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Ordering information: Notes on customized inscription → Data sheet, additional product information (links), Standards: IEC/EN 60947, VDE 0660
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
107062
Model Code
M22-DDLM-*-*-*
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CE
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947
UL 508
IEC/EN 60947-5
DNV
GL
LR
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947
UL 508
IEC/EN 60947-5
DNV
GL
LR
Catalog Notes
Notes on customized inscription → Data sheet, additional product information (links)
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Other |
| Number of command positions (EF001372) | 2 |
| Construction type lens (EF006253) | Oval |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | Yes |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA), front side (EF011961) | 4X |
