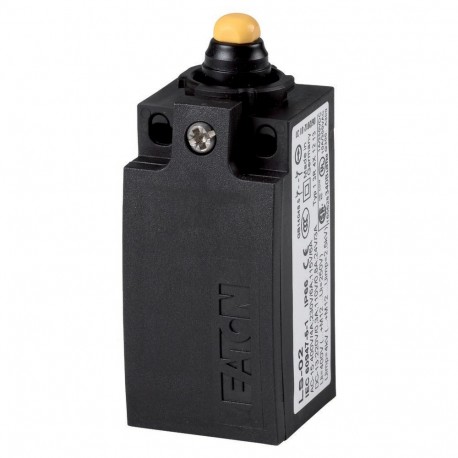

LS-11S-SW 272020 Y7-272020 EATON ELECTRIC Position switch, Rounded plunger, Basic device, expandable, 1 N/O,..
LS-11S-SW
272020
Y7-272020
EATON - MOELLER
10 Pcs.
Automation > End switch
Position Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller LS-11S-SW position switch is a rounded plunger basic device engineered to detect mechanical positions and limits in automated machinery. Industrial position switches are widely used across production lines and material handling systems to track moving components and provide critical feedback signals to control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 31 mm
- Diameter sensor (EF007111): 0 mm
- Height of sensor (EF007283): 61 mm
- Length of sensor (EF007334): 33.5 mm
- Rated operation current Ie at AC-15, 24 V (EF007084): 6 A
- Rated operation current Ie at AC-15, 125 V (EF007082): 6 A
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Rated operation current Ie at DC-13, 24 V (EF007087): 3 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0.3 A
- Switching function (EF000189): Quick-break switch
- Switching function latching (EF007447): No
- Output electronic (EF006987): No
- Forced opening (EF006694): Yes
- Number of safety auxiliary contacts (EF006940): 1
- Number of contacts as normally closed contact (EF008255): 1
More info
▲General specifications
CSA File No.: 012528
CE
CSA
IEC/EN 60947
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA-C22.2 No. 14
UL File No.: E29184
CSA Class No.: 3211-03
UL
Product specifications
Positive opening
Expandable
Snap-action contact
Damp heat, cyclic, to IEC 60068-2-30
Plastic
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
NEMA Other
Max. 1/0.5 m/s (with DIN cam, mechanical actuation)
