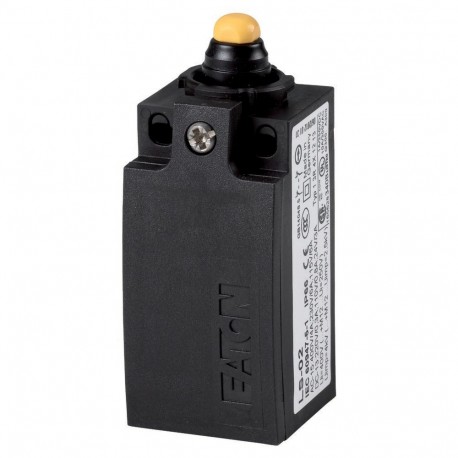

LS-11D-SW 272007 Y7-272007 EATON ELECTRIC Position switch, Rounded plunger, Basic device, expandable, 1 N/O,..
LS-11D-SW
272007
Y7-272007
EATON - MOELLER
1 Pcs.
Automation > End switch
Position Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An LS-11D-SW 272007 EATON ELECTRIC position switch is a standard electromechanical contact device utilized across industrial applications to monitor and interrupt electrical control circuits based on mechanical actuation. These components provide accurate travel limitation signals in automated assembly lines, packaging equipment, and material handling systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 31 mm
- Diameter sensor (EF007111): 0 mm
- Height of sensor (EF007283): 61 mm
- Length of sensor (EF007334): 33.5 mm
- Rated operation current Ie at AC-15, 24 V (EF007084): 6 A
- Rated operation current Ie at AC-15, 125 V (EF007082): 6 A
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Rated operation current Ie at DC-13, 24 V (EF007087): 3 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0.3 A
- Switching function (EF000189): Slow-action switch
- Switching function latching (EF007447): No
- Output electronic (EF006987): No
- Forced opening (EF006694): Yes
- Number of safety auxiliary contacts (EF006940): 0
- Number of contacts as normally closed contact (EF008255): 1
More info
▲General specifications
CSA File No.: 012528
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 14
CE
UL File No.: E29184
CSA
UL 508
Product specifications
Forced opening
Positive opening
Damp heat, cyclic, to IEC 60068-2-30
Insulated material
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
NEMA Other
Max. 1/0.5 m/s (with DIN cam, mechanical actuation)
