> EATON - MOELLER > Industrial Fuse Bases > 1713627

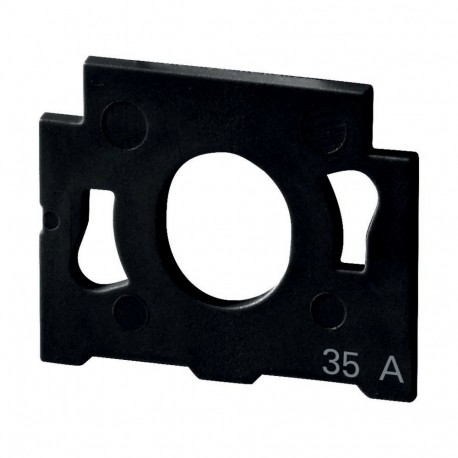

EATON - MOELLER LPC35-ADAPTER LPC35-ADAPTER 1713627 Y8-1713627 EATON ELECTRIC Fixing rating plug 35A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPC35-ADAPTER 1713627 Y8-1713627 EATON ELECTRIC Fixing rating plug 35A

LPC35-ADAPTER

1713627

Y8-1713627

EATON - MOELLER

10 Pcs.

Fixing rating plug 35A Eaton LPC Fixing rating plug 35A fuse switch-disconnector 35A, D III, adapter plate

Automation > D-system screw adapter
Industrial Fuse Bases

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton LPC Accessory Adapter plate
Catalog Number
1713627
Model Code
LPC35-ADAPTER
EAN
8711426744004
Product Length/Depth
95 mm
Product Height
2 mm
Product Width
76 mm
Product Weight
1.2 g
Compliances
CE

Features & Functions

Color
Black

General

Type
Adapter plate

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Electrical rating

Rated operational current (Ie) - max
35 A

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.

ETIM for 1713627 Circuit breakers and fuses (EC000085)
Feature Name Feature Value
Construction size (EF002566) DIII
Rated current (EF000227) 35 A
Colour code (EF000931) Black
