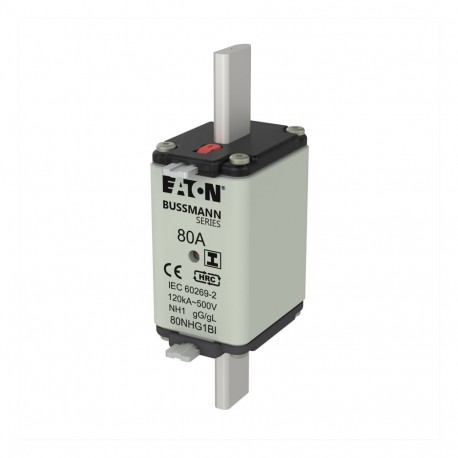

NH FUSE 80A 500V AC gG SIZE 1 80NHG1BI EATON ELECTRIC Fuse-link, LV, 80 A, AC 500 V, NH1, gL/gG, IEC, dual i..
NH FUSE 80A 500V AC gG SIZE 1
80NHG1BI
80NHG1BI
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 80 A, AC 500 V, NH1, gL/gG, IEC, dual indicator, insulated gripping lugs
NH FUSE 80A 500V AC gG SIZE 1
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
80NHG1BI
Model Code
NH FUSE 80A 500V AC gG SIZE 1
EAN
5027590491006
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
409 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
80 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH1
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH1 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 80 A |
| Rated voltage AC (EF007682) | 500 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
| Power loss at rated current (EF012389) | 7.7 W |
