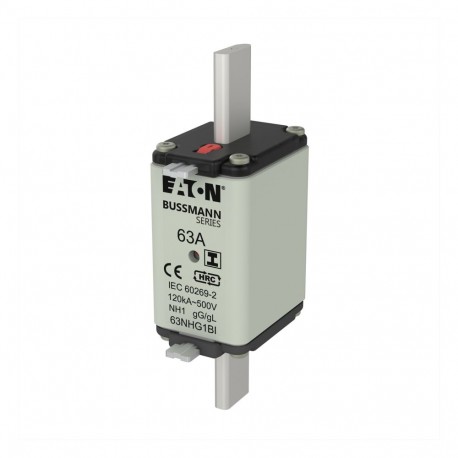

EATON - MOELLER NH FUSE 63A 500V gG SIZE 1 NH FUSE 63A 500V gG SIZE 1 63NHG1BI EATON ELECTRIC Fuse-link, LV, 63 A, AC 500 V, NH1, gL/gG, IEC, dual indi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 63A 500V gG SIZE 1 63NHG1BI EATON ELECTRIC Fuse-link, LV, 63 A, AC 500 V, NH1, gL/gG, IEC, dual indi..

NH FUSE 63A 500V gG SIZE 1

63NHG1BI

63NHG1BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 63 A, AC 500 V, NH1, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 63A 500V gG SIZE 1

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built with insulated metal gripping lugs, the Eaton Moeller NH FUSE 63A 500V gG SIZE 1 offers enhanced operator protection during replacement tasks in electrical control cabinets. It provides reliable gG operational performance for cable networks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269: NH1
  • Voltage type: AC
  • Rated current: 63 A
  • Rated voltage AC: 500 V
  • Rated switching capacity AC: 120 kA
  • Utilization category according to IEC 60269: gG (cable protection/equipment protection)
  • Type of fuse status indicator: Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL): Yes
  • Power loss at rated current: 5.6 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
63NHG1BI
EAN
5027590485623
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
407.3333333 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
63 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH1
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
