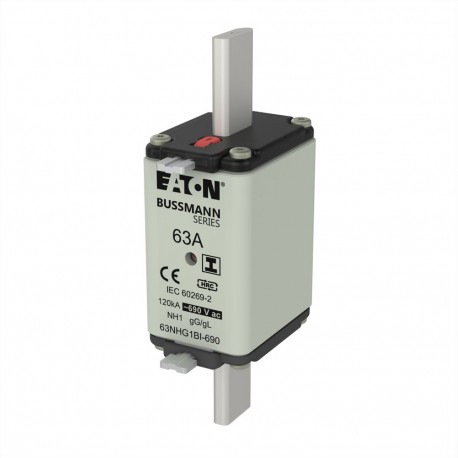

EATON - MOELLER NH FUSE 63A 690V gG SIZE 1 NH FUSE 63A 690V gG SIZE 1 63NHG1BI-690 EATON ELECTRIC Fuse-link, LV, 63 A, AC 690 V, NH1, gL/gG, IEC, dual .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 63A 690V gG SIZE 1 63NHG1BI-690 EATON ELECTRIC Fuse-link, LV, 63 A, AC 690 V, NH1, gL/gG, IEC, dual ..

NH FUSE 63A 690V gG SIZE 1

63NHG1BI-690

63NHG1BI-690

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 63 A, AC 690 V, NH1, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 63A 690V gG SIZE 1

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protection against electrical overloads in higher-voltage distribution systems is achieved using components like the Eaton Moeller NH FUSE 63A 690V gG SIZE 1. These industrial fuses are typically installed in main switchboards and motor control gear to ensure reliable circuit separation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH1
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 63 A
  • Rated voltage AC (EF007682): 690 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 5.6 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
63NHG1BI-690
EAN
5027590485630
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
407.3333333 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
63 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH3
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
