View larger
Images are for illustrative purposes only. Please refer to data sheet for details

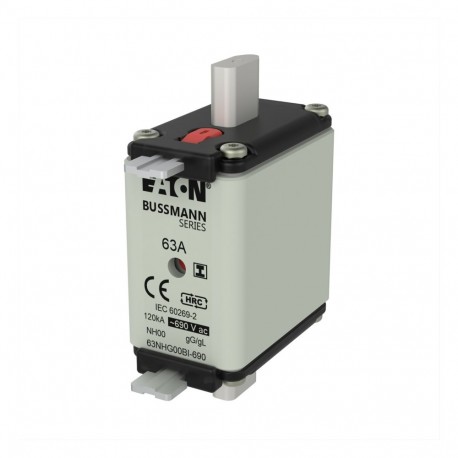

NH FUSE 63A 690V gG SIZE 00 63NHG00BI-690 EATON ELECTRIC Fuse-link, LV, 63 A, AC 690 V, NH00, gL/gG, IEC, du..
NH FUSE 63A 690V gG SIZE 00
63NHG00BI-690
63NHG00BI-690
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 63 A, AC 690 V, NH00, gL/gG, IEC, dual indicator, insulated gripping lugs
NH FUSE 63A 690V gG SIZE 00
Fuse, fuse-link, low voltage, 63 A, AC 690 V, NH00, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
63NHG00BI-690
Model Code
NH FUSE 63A 690V gG SIZE 00
EAN
5027590485432
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
197 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
63 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Product specification
Fuse size
NH00
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH00 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 63 A |
| Rated voltage AC (EF007682) | 690 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
