View larger
Images are for illustrative purposes only. Please refer to data sheet for details

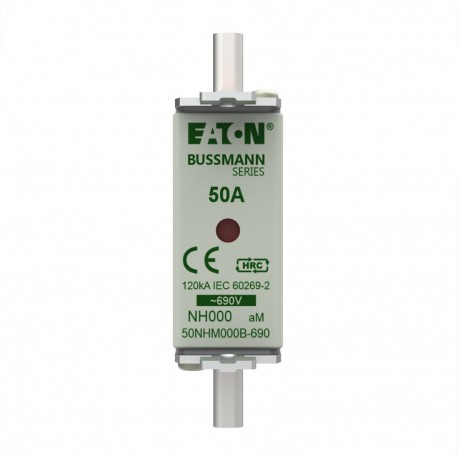

Low Voltage NH 50NHM0B EATON ELECTRIC Low-voltage h.b.c fuse switch strip, 160A, size 00
Low Voltage - NH
50NHM0B
EATON - MOELLER
1 Pcs.
Low-voltage h.b.c fuse switch strip, 160A, size 00
FUSE NH SIZE 0 AM 50A 500V
50NHM0B - Fuse-link, low voltage, 50 A, AC 500 V, NH0, aM, IEC, dual indicator
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse-link, low voltage, 50 A, AC 500 V, NH0, aM, IEC, dual indicator
Fuse, Fuse-link, low voltage, 50 A, AC 500 V, NH0, aM, IEC, dual indicator, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
Delivery program
Basic function
Fuse-link
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH0
Rated current
50 A
Rated voltage
500 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
aM (switchgear protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH0 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 50 A |
| Utilization category according to IEC 60269 (EF002572) | aM (switchgear protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
