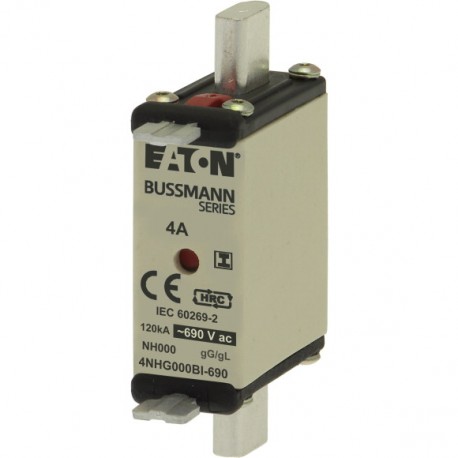

EATON - MOELLER Low Voltage - NH Low Voltage NH 4NHG000BI-690 EATON ELECTRIC Fuse-link, LV, 4 A, AC 500 V, NH000, gL/gG, IEC, dual indicator,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Low Voltage NH 4NHG000BI-690 EATON ELECTRIC Fuse-link, LV, 4 A, AC 500 V, NH000, gL/gG, IEC, dual indicator,..

Low Voltage - NH

4NHG000BI-690

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 4 A, AC 500 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 4AMP 690V gG SIZE 000 4NHG000BI-690 - Fuse-link, LV, 4A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 4AMP 690V SIZE 000 GG IMGL

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller Low Voltage - NH (4NHG000BI-690) is a low voltage fuse-link designed to protect industrial electrical distribution networks, wiring, and connected equipment against overcurrent and short-circuit conditions. Fuse-links of this type serve as sacrificial safety components in panelboards and switchgear assemblies, interrupting excessive current to prevent system damage. Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH000
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 4 A
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes

More info

▲
Fuse-link, LV, 4A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, Fuse-link, low voltage, 4A, AC 690 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH000
Rated current
4 A
Rated voltage
690 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
