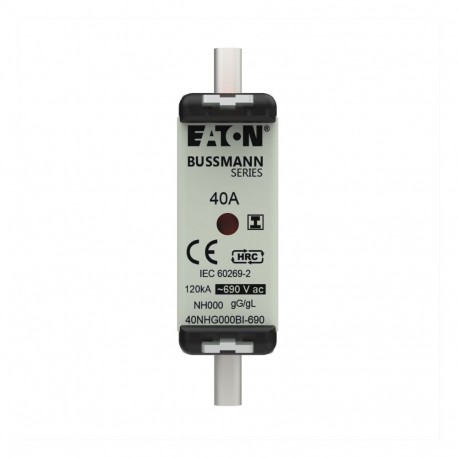

EATON - MOELLER Low Voltage - NH Low Voltage NH 40NHG000BI-690 EATON ELECTRIC Fuse-link, LV, 40A, AC 690 V, NH000, gL/gG, IEC, dual indicator.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Low Voltage NH 40NHG000BI-690 EATON ELECTRIC Fuse-link, LV, 40A, AC 690 V, NH000, gL/gG, IEC, dual indicator..

Low Voltage - NH

40NHG000BI-690

40NHG000BI-690

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 40A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 40AMP 690V SIZE 000 GG IMGL

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller Low Voltage - NH fuse-link provides dependable circuit interruption for electrical panels and machinery feeder circuits. Industrial installations rely on these components to maintain operational safety by instantly disconnecting faulty sections from the main power supply.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH000
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 40 A
  • Rated voltage AC (EF007682): 690 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 4 W

More info

▲
Low-voltage h.b.c fuse switch strip, 160A, size 00
Interval between phase centers 100mm size 00
[

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Fuse switch disconnector (EC001040)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Fuse switch disconnector ([email protected] [AKF058013])
Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
160 A
Rated operation power at AC-23, 400 V
372 kW
Conditioned rated short-circuit current Iq
80 kA
Rated short-time withstand current lcw
0 kA
Suitable for fuses
NH00
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Bolt connection
Cable entry
Other
Equipped with connectors
No
Suitable for ground mounting
No
Suitable for front mounting 4-hole
No
Suitable for busbar mounting
Yes
Type of control element
Rocker lever
Position control element
Front side
Motor drive optional
Yes
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
IP30
]
