View larger
Images are for illustrative purposes only. Please refer to data sheet for details

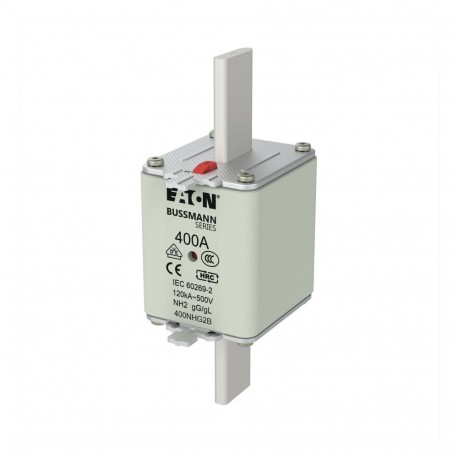

Low Voltage NH 400NHG2B-690 EATON ELECTRIC Fuse-link, LV, 400 A, AC 690 V, NH2, gL/gG, IEC, dual indicator, ..
Low Voltage - NH
400NHG2B-690
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 400 A, AC 690 V, NH2, gL/gG, IEC, dual indicator, live gripping lugs
NH FUSE 400 AMP 690V gG SIZE 2 DUAL IND
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Low-voltage h.b.c fuse switch strip, 160A, size 00
Interval between phase centers 100mm size 00
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Fuse switch disconnector (EC001040)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Fuse switch disconnector ([email protected] [AKF058013])
Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
160 A
Rated operation power at AC-23, 400 V
372 kW
Conditioned rated short-circuit current Iq
80 kA
Rated short-time withstand current lcw
0 kA
Suitable for fuses
NH00
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Bolt connection
Cable entry
Other
Equipped with connectors
No
Suitable for ground mounting
No
Suitable for front mounting 4-hole
No
Suitable for busbar mounting
Yes
Type of control element
Rocker lever
Position control element
Front side
Motor drive optional
Yes
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
IP30
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH2 |
| Voltage type (EF000187) | AC/DC |
| Rated current (EF000227) | 400 A |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
