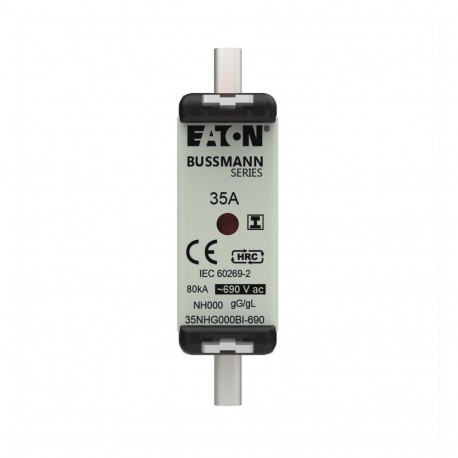

Low Voltage NH 35NHG000BI-690 EATON ELECTRIC Low-voltage h.b.c fuse switch strip, 160A, size 00
Low Voltage - NH
35NHG000BI-690
35NHG000BI-690
EATON - MOELLER
3 Pcs.
Low-voltage h.b.c fuse switch strip, 160A, size 00
NH FUSE 35AMP 690V SIZE 000 GG IMGL
NH FUSE 35AMP 690V SIZE 000 GG IMGL - Fuse-link, LV, 35 A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse-link, low voltage, 35 A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse-link, LV, 35 A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, Fuse-link, low voltage, 35A, AC 690 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH000
Rated current
35 A
Rated voltage
690 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH000 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 35 A |
| Rated voltage AC (EF007682) | 690 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
| Power loss at rated current (EF012389) | 4 W |
