View larger
Images are for illustrative purposes only. Please refer to data sheet for details

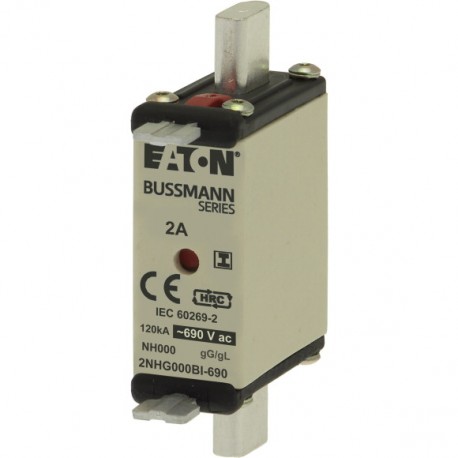

Low Voltage NH 2NHG000BI-690 EATON ELECTRIC Fuse-link, LV, 2 A, AC 500 V, NH000, gL/gG, IEC, dual indicator,..
Low Voltage - NH
2NHG000BI-690
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 2 A, AC 500 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
NH FUSE 2AMP 690V SIZE 000 GG
2NHG000BI-690 - Fuse-link, LV, 2 A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse-link, LV, 2 A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, fuse-link, low voltage, 2 A, AC 690 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH000
Rated current
2 A
Rated voltage
690 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH000 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 2 A |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
