EATON - MOELLER NH FUSE 250A 690V AC gG SIZE 1 NH FUSE 250A 690V AC gG SIZE 1 250NHG1BI-690 EATON ELECTRIC Fuse-link, LV, 250 A, AC 690V, NH1, gL/gG, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 250A 690V AC gG SIZE 1 250NHG1BI-690 EATON ELECTRIC Fuse-link, LV, 250 A, AC 690V, NH1, gL/gG, IEC, ..

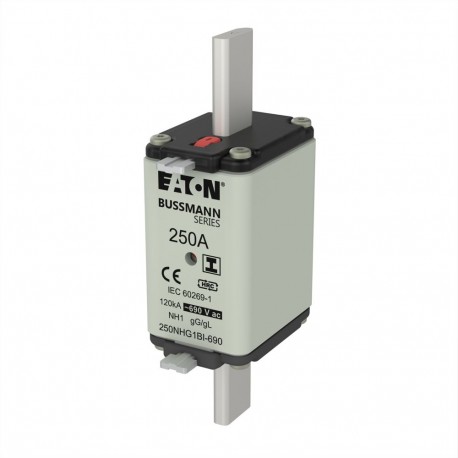

NH FUSE 250A 690V AC gG SIZE 1

250NHG1BI-690

250NHG1BI-690

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 250 A, AC 690V, NH1, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 250Amp 690V AC gG SIZE 1 NH FUSE 250Amp 690V AC gG SIZE 1 - Fuse-link, low voltage, 250 A, AC 690 V, 120 kA, NH1, gG/gL, IEC, dual indicator, insulated gripping lugs

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This NH fuse link is an industrial low-voltage protective device utilized to safeguard electrical cables and distribution equipment against harmful overloads and short-circuit currents. Components of this type are widely integrated into main switchboards, motor control centers, and panelboards to interrupt fault currents safely and isolate damaged circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH1
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 250 A
  • Rated voltage AC (EF007682): 690 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 22 W

More info

▲
Fuse-link, low voltage, 250 A, AC 690 V, 120 kA, NH1, gG/gL, IEC, dual indicator, insulated gripping lugs
Fuse, Fuse-link, low voltage, 250 A, AC 690 V, NH1, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
250 A
Rated voltage
AC 690 V
Construction size
NH1
Utilization category
gG/gL
Status indicator
dual indicator
Description
insulated gripping lugs
Breaking Capacity
120 kA
usable for size/applications
industrial
Standard/Approval
IEC
Shape
square-body with knife blade contacts
Standards/Regulations
IEC 60269-1
Optional accessories
fuse-holder SD1-D

Design verification as per IEC/EN 61439

Rated operational current for specified heat dissipation [In]
250 A
Equipment heat dissipation, current-dependent [Pvid]
22 W

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH1
Rated current
250 A
Rated voltage
690 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
