View larger
Images are for illustrative purposes only. Please refer to data sheet for details

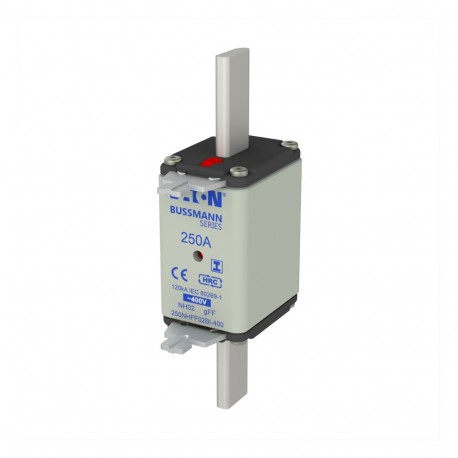

EATON 250A 400V GFF 02 EATON 250NHFF02BI-400 EATON ELECTRIC Fuse-link, LV, 250 A, AC 400 V, NH02, gFF, IEC, ..
EATON 250A 400V GFF 02 EATON
250NHFF02BI-400
250NHFF02BI-400
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 250 A, AC 400 V, NH02, gFF, IEC, dual indicator, insulated gripping lugs
EATON 250A 400V GFF 02 EATON
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
250NHFF02BI-400
EAN
5027590469524
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
453 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
250 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH00
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH02 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 250 A |
| Rated voltage AC (EF007682) | 400 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
| Power loss at rated current (EF012389) | 24 W |
