View larger
Images are for illustrative purposes only. Please refer to data sheet for details

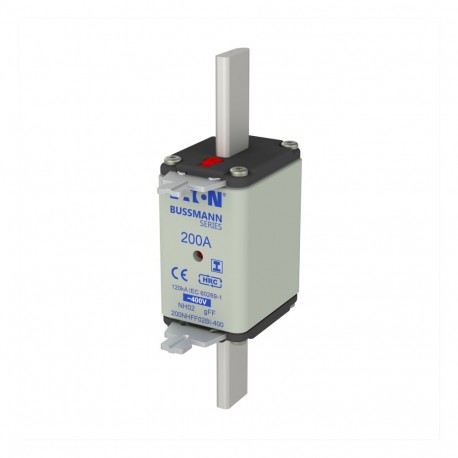

EATON 200A 400V GFF 02 EATON 200NHFF02BI-400 EATON ELECTRIC Fuse-link, LV, 200 A, AC 400 V, NH02, gFF, IEC, ..
EATON 200A 400V GFF 02 EATON
200NHFF02BI-400
200NHFF02BI-400
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 200 A, AC 400 V, NH02, gFF, IEC, dual indicator, insulated gripping lugs
EATON 200A 400V GFF 02 EATON
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
200NHFF02BI-400
EAN
5027590466585
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
453 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Product specifications
Type
Fuse
Application
Amperage Rating
200 A
Fitted with:
Insulated metal gripping lugs
Fuse size
NH01
Current type
AC
Breaking capacity
120 kA
Frequency rating - max
62 Hz
Frequency rating - min
45 Hz
Rated switching capacity
120 kA
Rated voltage AC
400 V
Class
Class gG/gL
Fuse type
Square body with knife blade contact
Utilization category
gFF(full-range, extra fast operation)
Color
None
Interrupt rating
120 kAIC
Fuse indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
Watt losses
21 W
Connection
Blade end
Construction
NH02
Construction size
NH02
Fuse shape
Square body
Knife blade contacts
Knife blade contacts
Voltage type
AC
Suitable for
Microswitch 170H0235
Material
Ceramic body
Quantity
3
Voltage rating
400 V
Fuse system (according to IEC 60269)
Fuse system A
Rated switching capacity AC
120 kA
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH02 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 200 A |
| Rated voltage AC (EF007682) | 400 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
| Power loss at rated current (EF012389) | 21 W |
