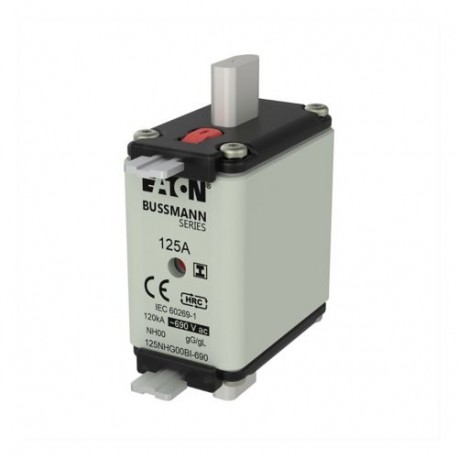

NH FUSE 125AMP 690V gG SIZE 00 125NHG00BI-690 EATON ELECTRIC Fuse-link, LV, 125 A, AC 690 V, NH00, gL/gG, IE..
NH FUSE 125AMP 690V gG SIZE 00
125NHG00BI-690
125NHG00BI-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing robust circuit protection in industrial electrical layouts, the Eaton Moeller NH FUSE 125AMP 690V gG SIZE 00 125NHG00BI-690 EATON ELECTRIC Fuse-link, LV, 125 A, AC 690 V, NH00, gL/gG, IE.. safely interrupts excessive fault currents. Technicians regularly integrate these cartridge fuses into distribution switchboards, motor control centers, and electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH00
- Voltage type (EF000187): AC
- Rated current (EF000227): 125 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): Yes
- Power loss at rated current (EF012389): 9.5 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
